12V Prismatic Lithium Batteries
HCG4DS(BCI Group 4D) Series-12V318Ah LiFePO4 Lithium Battery
Certifications
- UL1973
- UL9540
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- IEC62919
- Electrical Specifications
- Nominal Voltage | 12.8V | 12.8V
- Nominal Capacity
- 318Ah | 318Ah
- Parallel Connection
- Max. 4units | Max. 4units
- Series Connection
- Max. 4units | Max. 4units
- BMS
- 4S200A | 4S200A
- Bluetooth
- No | Android/IOS
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 14.4±0.2V | 14.4±0.2V
- Standard Current
- 63A | 63A
- Fast Charge Current
- 159A | 159A
- Discharge Specifications
- Standard Current | 63A | 63A
- Max. Continuous Current
- 200A | 200A
- Peak Current
- 800A(300ms) | 800A(300ms)
- Cut-off Voltage
- 10V | 10V
- Mechanical Specifications

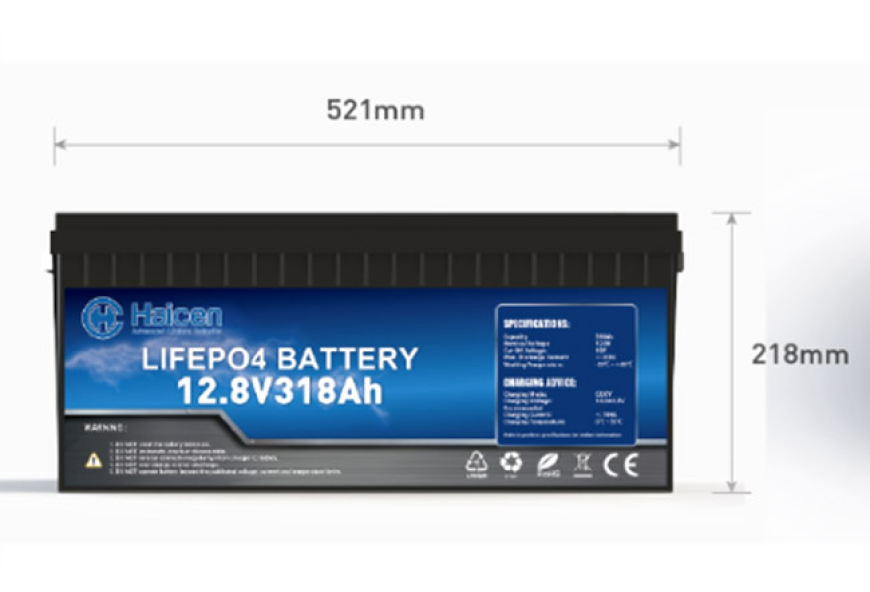

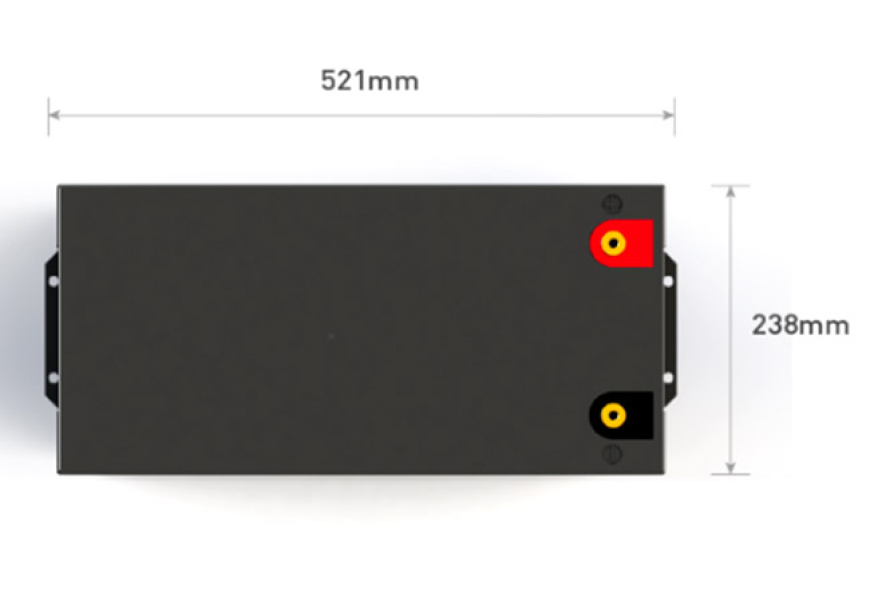

- Dimensions (mm) | 20.5×9.4×8.6 in(G4D)
- Approx. Weight
- 61.7 lb | 61.7 lb

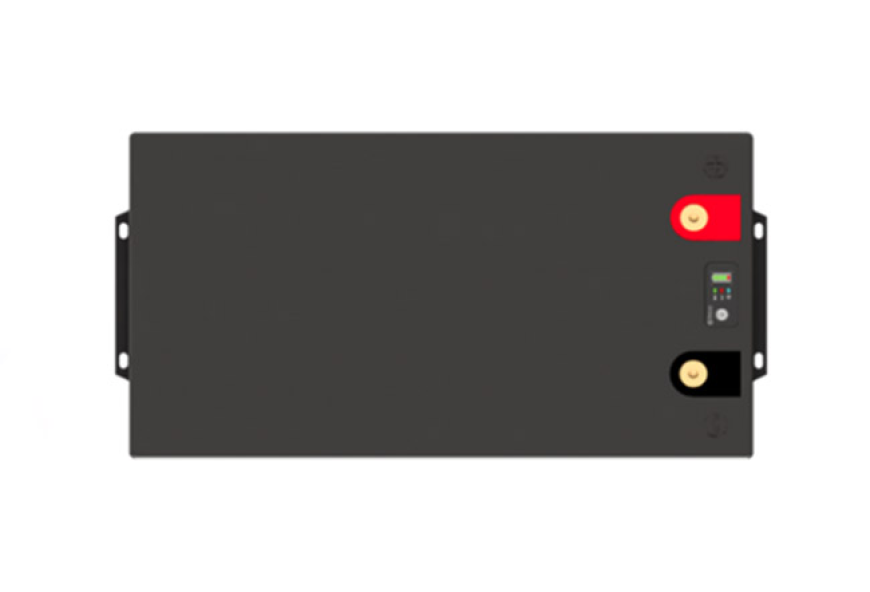

- Terminal Type
- M8
- Case Color / Material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- 3.2V106Ah prismatic cell
- Cell Holder
- Yes
- Temperature Specifications
- Charge Temp | 32°F to 131°F
- Discharge Temperature
- -4°F to 140°F
- Storage Temperature
- 23°F to 113°F
Dimensions and weight shown in imperial units (in / lb).
