Slimline Lithium Batteries

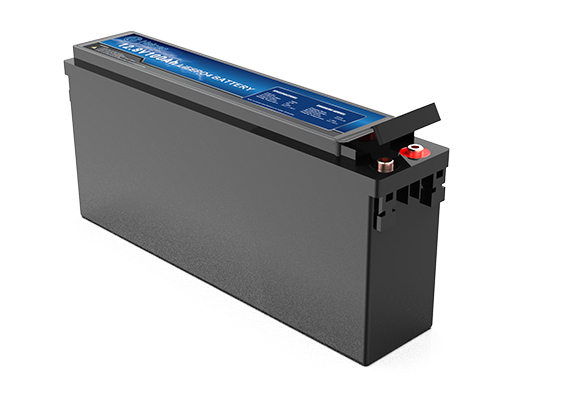

HC507 Series-12V100/125Ah, 24V60Ah Slimline LiFePO4 Lithium Battery
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- HC507-12100
- HC507-12125 | HC507-2460
- Electrical Specifications
- Nominal Voltage | 12.8V | 12.8V | 24V
- Nominal Capacity
- 100Ah | 125Ah | 60Ah
- Parallel Connection
- Max. 6units | Max. 6units | Max.6units
- Series Connection
- Max. 4units | Max. 4units | Max.2units
- BMS
- 4S100A | 4S150A | 8S80A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Cycle Life
- 3000times Cycles@100%DODand 6000times @80%DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V
- Standard Current
- 20A | 25A | 12A
- Fast Charge Current
- 50A | 62A | 30A
- Discharge Specifications
- Standard Current | 20A | 25A | 12A
- Max. Continuous Current
- 100A | 125A | 60A
- Peak Current
- 500A(300ms) | 600A(300ms) | 200A(300ms)
- Cut-off Voltage
- 10V | 10V | 20V
- Mechanical Specifications

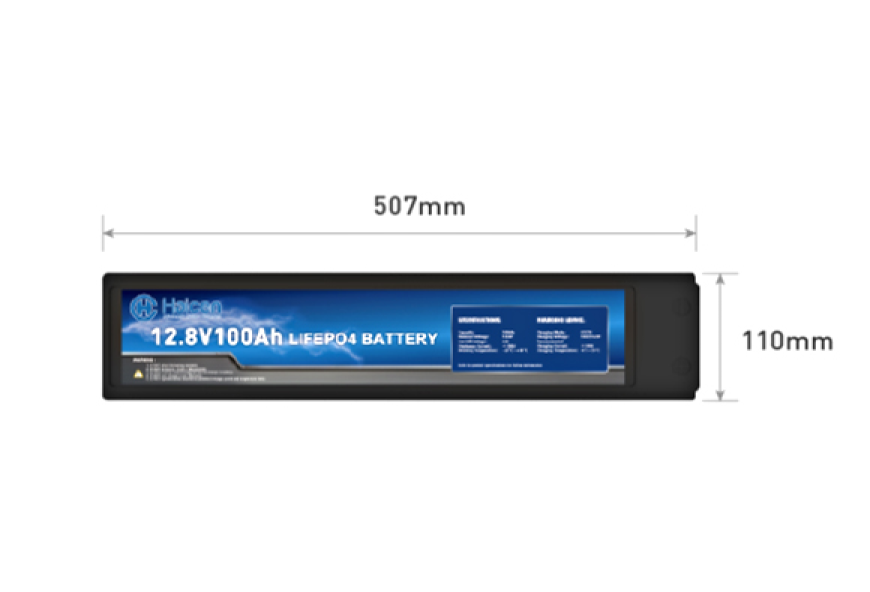

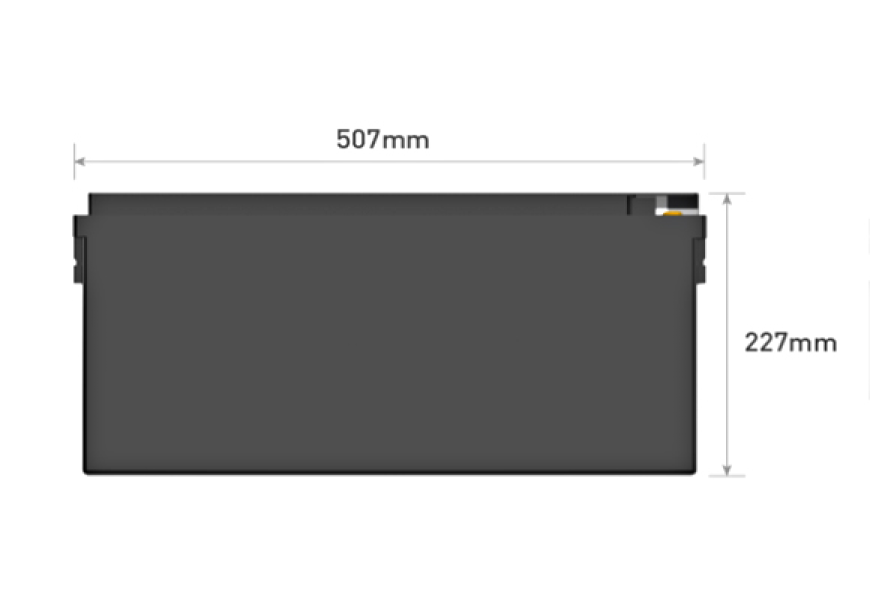

- Dimensions (mm) | 20.0×4.3×8.9 in
- Approx. Weight
- 26.5 lb | 27.6 lb | 26.5 lb
- Terminal Type
- M8
- Case Color / Material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell Holder
- Yes
- Temperature Specifications
- Charge Temp | 32°F to 131°F
- Discharge Temperature
- -4°F to 140°F
- Storage Temperature
- 23°F to 113°F
Dimensions and weight shown in imperial units (in / lb).
