Golf Cart Lithium Batteries

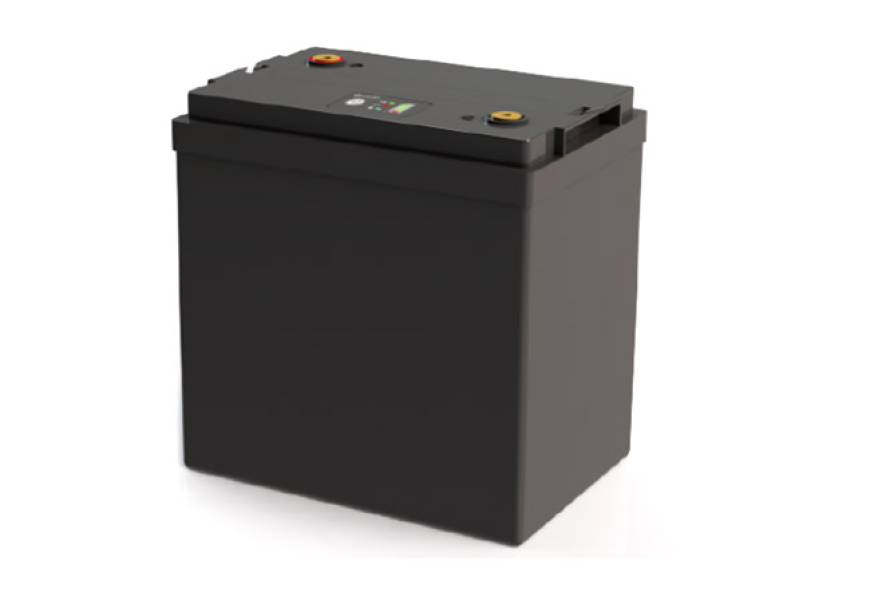

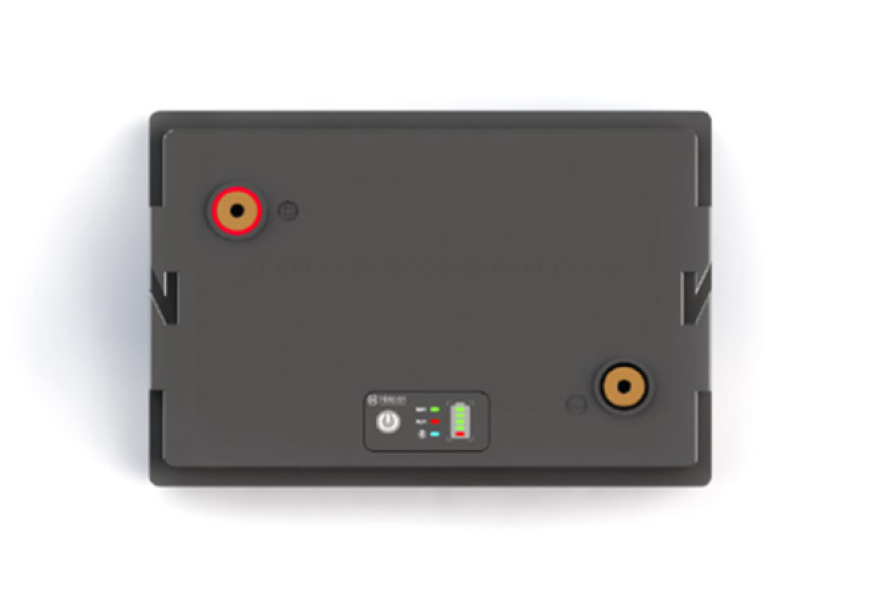

HCGC2S Series, 48V32Ah, 48V35Ah Smart LiFePO4 Lithium Battery
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- Electrical Specifications
- Nominal Voltage | 48V | 48V | 48V | 48V
- Nominal Capacity
- 32Ah | 32Ah | 35Ah | 35Ah
- Parallel Connection
- Max.6units | Max. 6units | Max.6units | Max. 6units
- Series Connection
- No | No | No | No
- BMS
- 16S60A | 16S60A | 16S60A | 16S60A
- Bluetooth
- No | Android/IOS | No | Android/IOS
- Heating
- No | No | No | No
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 57.6±0.8V | 57.6±0.8V | 57.6±0.8V | 57.6±0.8V
- Standard Current
- 6A | 6A | 7A | 7A
- Fast Charge Current
- 16A | 16A | 17A | 17A
- Discharge Specifications
- Standard Current | 6A | 6A | 7A | 7A
- Max. Continuous Current
- 32A | 32A | 35A | 35A
- Peak Current
- 200A(300ms) | 200A(300ms) | 200A(300ms) | 200A(300ms)
- Cut-off Voltage
- 40V | 40V | 40V | 40V
- Mechanical Specifications

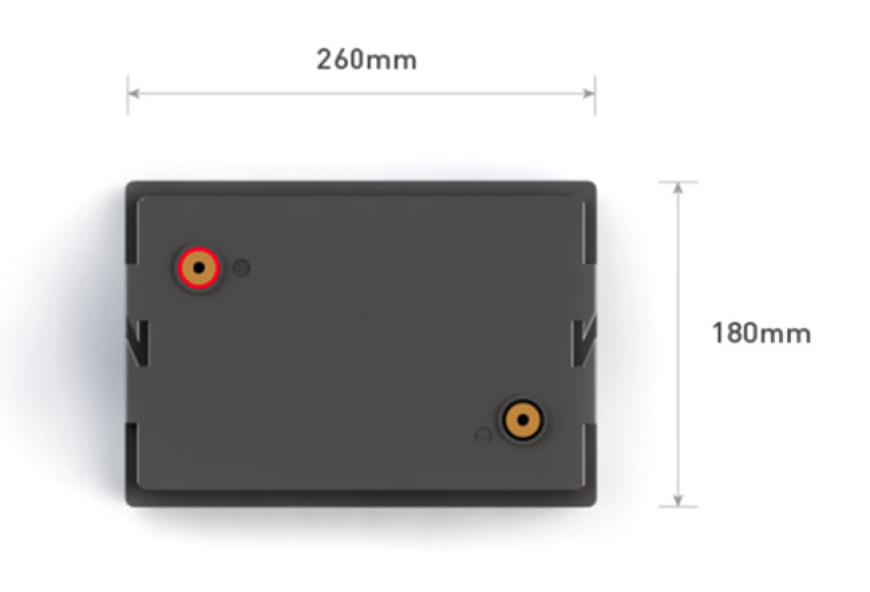

- Dimensions (mm) | 10.2×7.1×10.6 in(Group C2)
- Approx. Weight
- 30.4 lb | 30.4 lb | 33.1 lb | 33.1 lb
- Terminal Type
- M8
- Case Color / Material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell Holder
- Yes
- Temperature Specifications
- Charge Temp | 32°F to 131°F
- Discharge Temperature
- -4°F to 140°F
- Storage Temperature
- 23°F to 113°F
Dimensions and weight shown in imperial units (in / lb).
