Deep Cycle Lithium Batteries

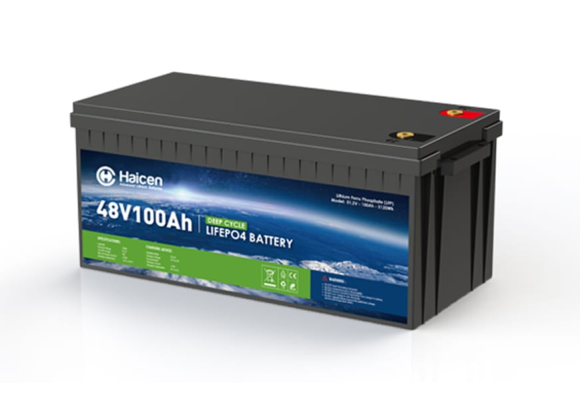

48V100Ah(BCI Group 4D) Deep Cycle Lithium Battery

Electrical Specifications: Nominal Voltage | 51.2V
Nominal Capacity: 100Ah
Parallel Connection: Max. 4units
Series Connection: NO
BMS: 16S100A
Circuit Protection: Over charge, Over discharge, Over current, Over temp, Short, Balance
Communication: Bluetooth, Heating, Display, RS485 or CANBus
Cycle Life: 3000times Cycles @100%DOD and 6000times @80% DOD
Self Discharge: Less than 3% per month
Charge Efficiency: 100%@0.2C
Discharge Efficiency: 98-100%@1C
Charge Specifications: Charge Voltage | 57.6±0.8V
Standard Current: 20A
Fast Charge Current: 50A
Discharge Specifications: Standard Current | 20A
Max. Continuous Current: 100A
Peak Current: 500A(300ms)
Cut-off Voltage: 40V
Mechanical Specifications: Dimensions (mm) | 20.5×9.4×8.6 in (G4D)
Approx. Weight: 79.4 lb
Terminal Type: M8
Case Color / Material: Black Plastic Case (ABS)
IP Rating: IP65
Cell Type: 3.2V100Ah Prismatic Cell
Temperature Specifications: Charge Temp | 32°F to 131°F （32°F to 131°F）
Discharge Temperature: -4°F to 140°F （-4°F to 140°F）
Storage Temperature: 23°F to 113°F （23°F to 113°F）

Dimensions and weight shown in imperial units (in / lb).
