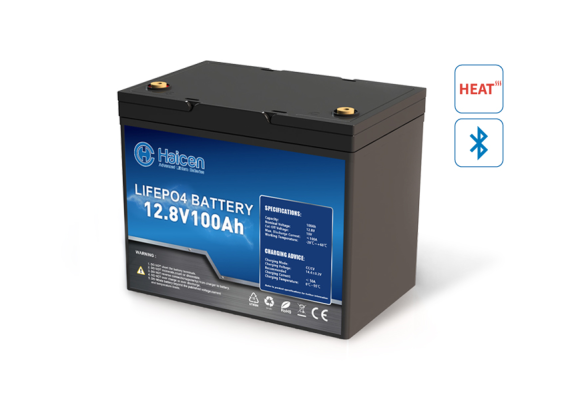

12.8V100Ah(BCI Group 24) Deep Cycle Lithium Battery

Electrical Specifications: Nominal Voltage | 12.8V
Nominal Capacity: 100Ah
Parallel Connection: Max. 6units
Series Connection: Max. 4units
BMS: 4S100A
Circuit Protection: Over charge, Over discharge, Over current, Over temp, Short, Balance
Communication: Bluetooth, Heating, Display, RS485 or CANBus
Cycle Life: 3000times Cycles @100%DOD and 6000times @80% DOD
Self Discharge: Less than 3% per month
Charge Efficiency: 100%@0.2C
Discharge Efficiency: 98-100%@1C
Charge Specifications: Charge Voltage | 14.4±0.2V
Standard Current: 20A
Fast Charge Current: 50A
Discharge Specifications: Standard Current | 20A
Max. Continuous Current: 100A
Peak Current: 500A(300ms)
Cut-off Voltage: 10V
Mechanical Specifications: Dimensions (mm) | 10.2×6.7×8.2 in (Group 24)
Approx. Weight: 22.0 lb
Terminal Type: M8
Case Color / Material: Black Plastic Case (ABS)
IP Rating: IP65
Cell Type: 3.2V100Ah Prismatic Cell
Temperature Specifications: Charge Temp | 32°F to 131°F （32°F to 131°F）
Discharge Temperature: -4°F to 140°F （-4°F to 140°F）
Storage Temperature: 23°F to 113°F （23°F to 113°F）

Dimensions and weight shown in imperial units (in / lb).
