Deep Cycle Lithium Batteries

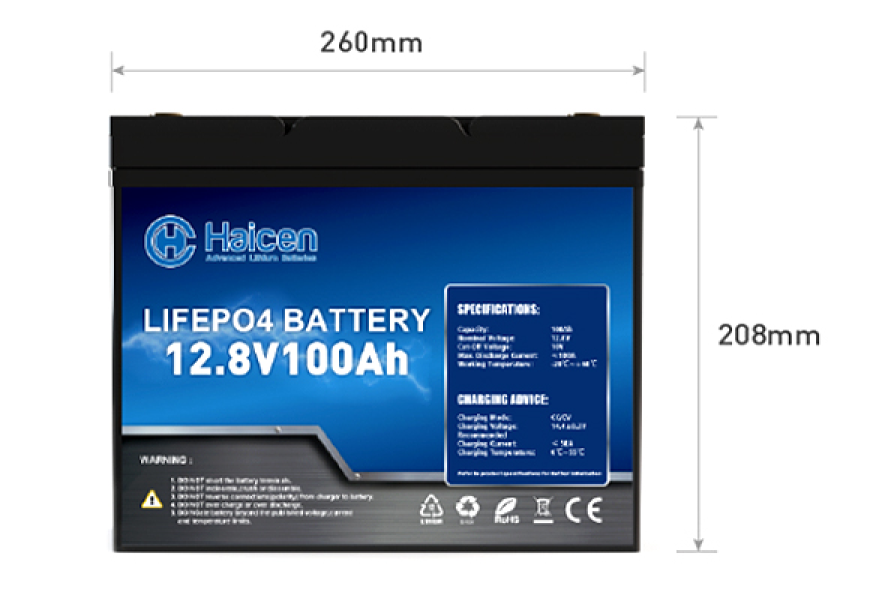

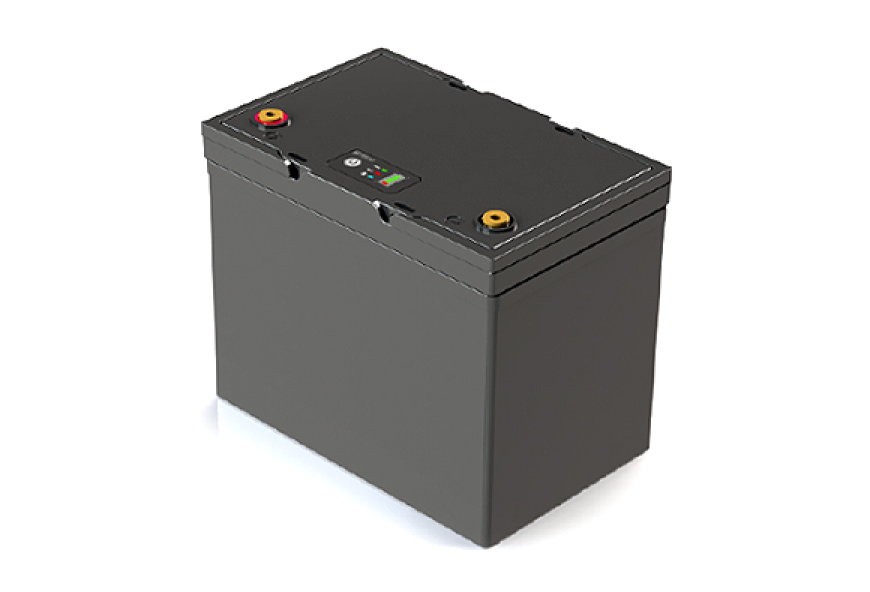

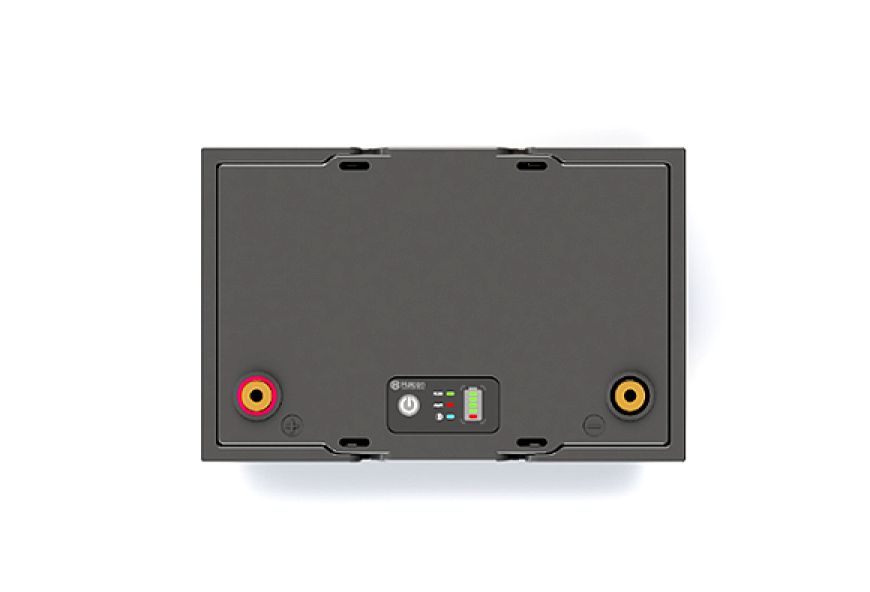

HCG24S(BCI Group 24) Series-12V100/120/135Ah Smart LiFePO4 Lithium Battery

Electrical Specifications

Nominal Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V

Nominal Capacity

100Ah | 100Ah | 120Ah | 120Ah | 135Ah | 135Ah

Parallel Connection

Max. 6units | Max. 6units | Max. 6units | Max. 6units | Max. 6units | Max. 6units

Series Connection

Max. 4units | Max. 4units | Max. 4units | Max. 4units | Max. 4units | Max. 4units

BMS

4S100A | 4S100A | 4S150A | 4S150A | 4S150A | 4S150A

Bluetooth

Android/IOS | Android/OS | Android/IOS | Android/IOS | Android/IOS | Android/1OS

Heating

No | Yes | No | Yes | No | Yes

Circuit Protection

Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp

Cycle Life

3000times Cycles @100%DOD and 6000times @80% DOD

Self Discharge

Less than 3% per month

Charge Efficiency

100%@0.2C

Discharge Efficiency

98-100%@1C

Charge Specifications

Charge Voltage | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V

Standard Current

20A | 20A | 24A | 24A | 27A | 27A

Fast Charge Current

50A | 50A | 60A | 60A | 67A | 67A

Discharge Specifications

Standard Current | 20A | 20A | 24A | 24A | 27A | 27A

Max. Continuous Current

100A | 100A | 120A | 120A | 135A | 135A

Peak Current

700A(300ms) | 700A(300ms) | 800A(300ms) | 800A(300ms) | 800A(300ms) | 800A(300ms)

Cut-off Voltage

10V | 10V | 10V | 10V | 10V | 10V

Mechanical Specifications

Dimensions (mm) | 10.2×6.7×8.2 in(Group 24)

Approx. Weight

25.4 lb | 26.5 lb | 28.7 lb | 29.8 lb | 28.7 lb | 29.8 lb

Terminal Type

M8

Case Color / Material

Black Plastic case(ABS)

IP Rating

IP65

Cell Type

Cylinder LiFePO4 cell

Cell Holder

Yes

Temperature Specifications

Charge Temp | 32°F to 131°F | -4°F to 131°F | 32°F to 131°F | -4°F to 131°F | 32°F to 131°F | -4°F to 131°F

Discharge Temperature

-4°F to 140°F

Storage Temperature

23°F to 113°F

Dimensions and weight shown in imperial units (in / lb).
