12V Prismatic Lithium Batteries

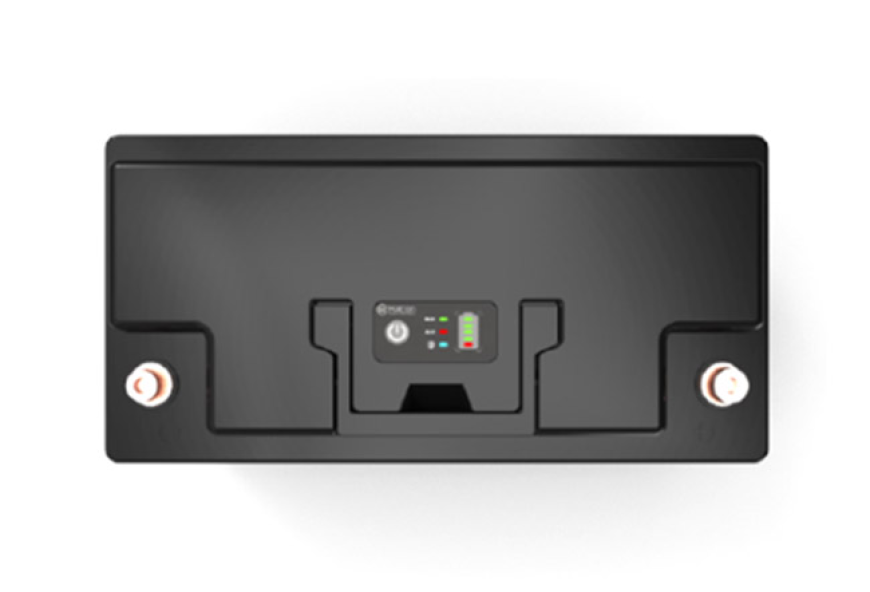

HC352S Series-12V106Ah LiFePO4 Lithium Battery

Certifications

HC352-12106: HC352S-12106BT
Electrical Specifications: Nominal Voltage | 12.8V | 12.8V
Nominal Capacity: 106Ah | 106Ah
Parallel Connection: Max. 4units | Max. 4units
Series Connection: Max. 4units | Max. 4units
BMS: 4S100A | 4S100A
Bluetooth: No | Android/IOS
Circuit Protection: Over charge, Over discharge, Over current, Over temp, Short, Balance
Cycle Life: 3000times Cycles @100%DOD and 6000times @80% DOD
Self Discharge: Less than 3% per month
Charge Efficiency: 100%@0.2C
Discharge Efficiency: 98-100%@1C
Charge Specifications: Charge Voltage | 14.4±0.2V | 14.4±0.2V
Standard Current: 21A | 21A
Fast Charge Current: 53A | 53A
Discharge Specifications: Standard Current | 21A | 21A
Max. Continuous Current: 100A | 100A
Peak Current: 500A(300ms) | 700A(300ms)
Cut-off Voltage: 10V | 10V

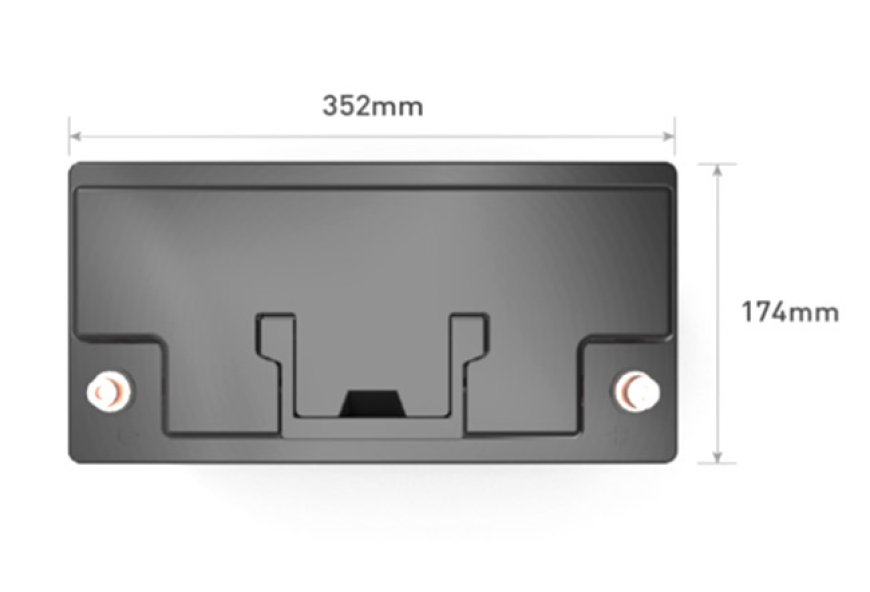

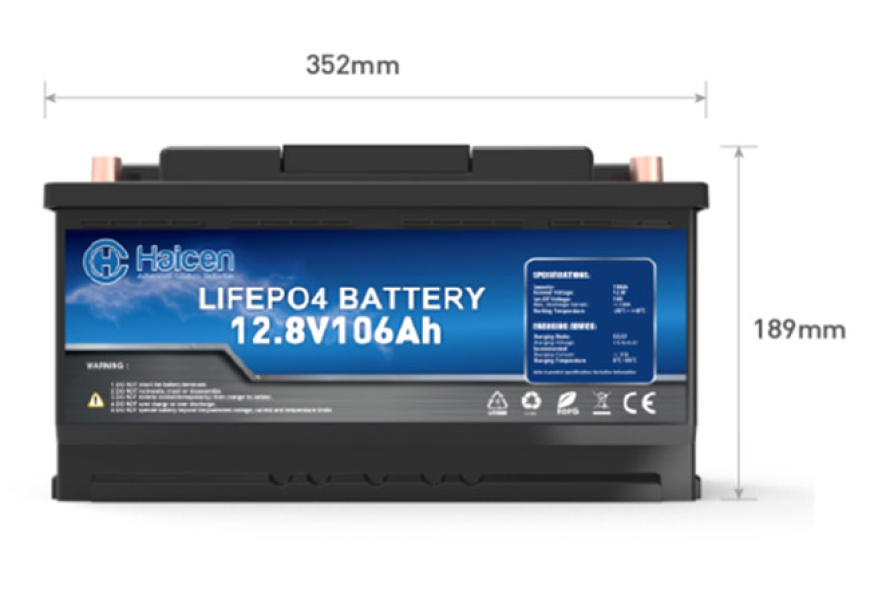

Mechanical Specifications: Dimensions (mm) | 13.9×6.9×7.4 in
Approx. Weight: 22.0 lb | 22.0 lb
Terminal Type: M8
Case Color / Material: Black Plastic case(ABS)
IP Rating: IP65
Cell Type: 3.2V106Ah prismatic cell
Cell Holder: Yes
Temperature Specifications: Charge Temp | 32°F to 131°F
Discharge Temperature: -4°F to 140°F
Storage Temperature: 23°F to 113°F

Dimensions and weight shown in imperial units (in / lb).
