Golf Cart Lithium Batteries

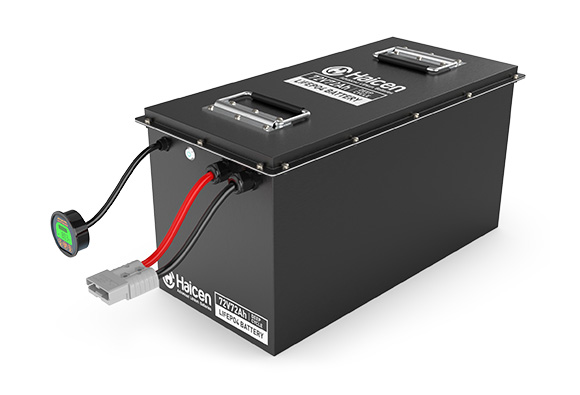

HC7272 Series-72V72Ah LiFePO4 Lithium Battery

Certifications

Electrical Specifications: Nominal Voltage | 76.8V
Nominal Capacity: 72Ah
Parallel Connection: Max. 4units
Series Connection: No
BMS: 24S150A
Circuit Protection: Over charge, Over discharge, Over current, Over temp, Short, Balance
Optional Function: Rs485 ,CAN; LCD; Active balancing module
Cycle Life: 3000times Cycles@100%DODand 6000times @80%DOD
Self Discharge: Less than 3% per month
Charge Efficiency: 100%@0.2C
Discharge Efficiency: 98-100%@1C
Charge Specifications: Charge Voltage | 86.4V
Standard Current: 14.4A
Fast Charge Current: 36A
Discharge Specifications: Standard Current | 14.4A
Max. Continuous Current: 150A
Peak Current: 300A(200ms)
Cut-off Voltage: 60V

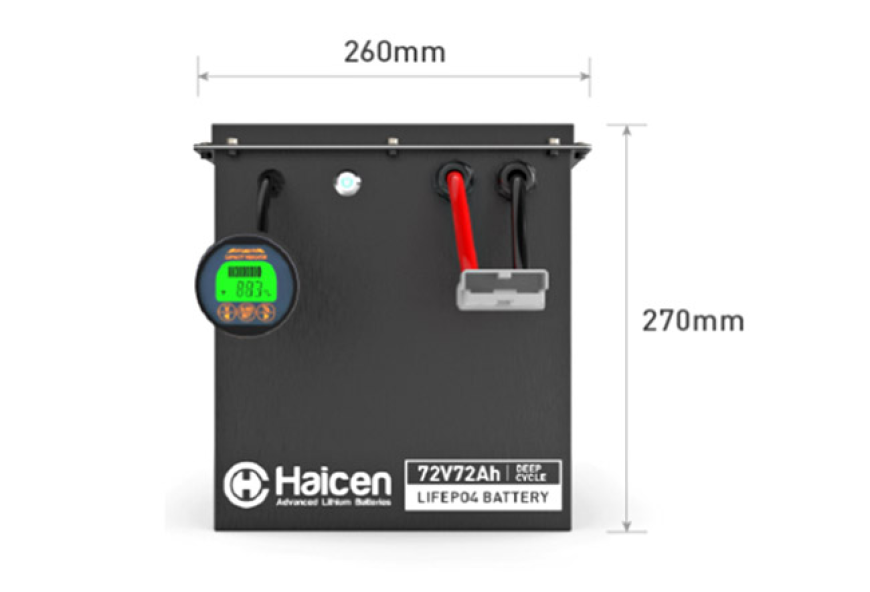

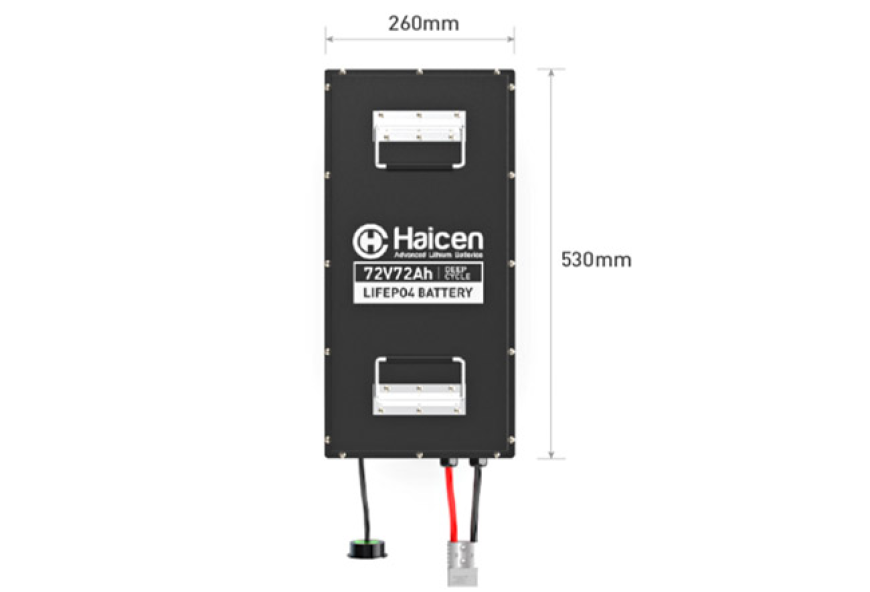

Mechanical Specifications: Dimensions (mm) | 20.9×10.2×10.6 in
Approx. Weight: 110.2 lb
Terminal Type: M8
Case Color / Material: Black Metal case
IP Rating: IP65
Cell Type: Cylinder LiFePO4 cell
Cell Holder: Yes
Temperature Specifications: Charge Temp | 32°F to 131°F
Discharge Temperature: -4°F to 140°F
Storage Temperature: -4°F to 113°F

Dimensions and weight shown in imperial units (in / lb).
