48V ESS Module

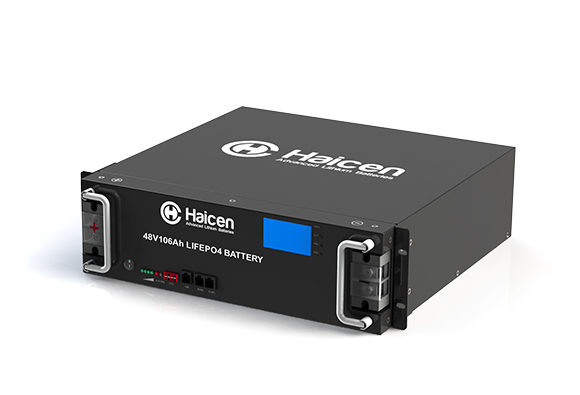

HC48106-3U Series-48V106Ah LiFePO4 Lithium Battery
Certifications
- UL1642
- UL1973
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- Electrical Specifications
- Nominal Voltage | 51.2V
- Nominal Capacity
- 106Ah
- Parallel Connection
- Max. 16units
- Series Connection
- No
- BMS
- 16S100A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Communication
- 2xRs485 and 1xCAN, LCD
- Cycle Life
- 3000times Cycles@100%DODand 6000times @80%DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 57.6±0.8V
- Standard Current
- 20A
- Fast Charge Current
- 50A
- Max. Continuous Current
- 100A
- Peak Current
- 250A(2s)
- Cut-off Voltage
- 40V
- Mechanical Specifications

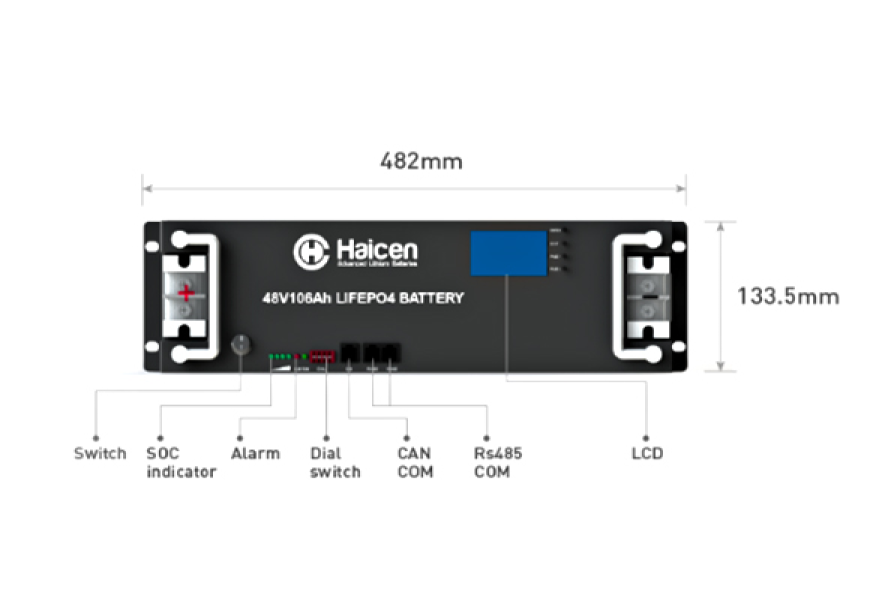

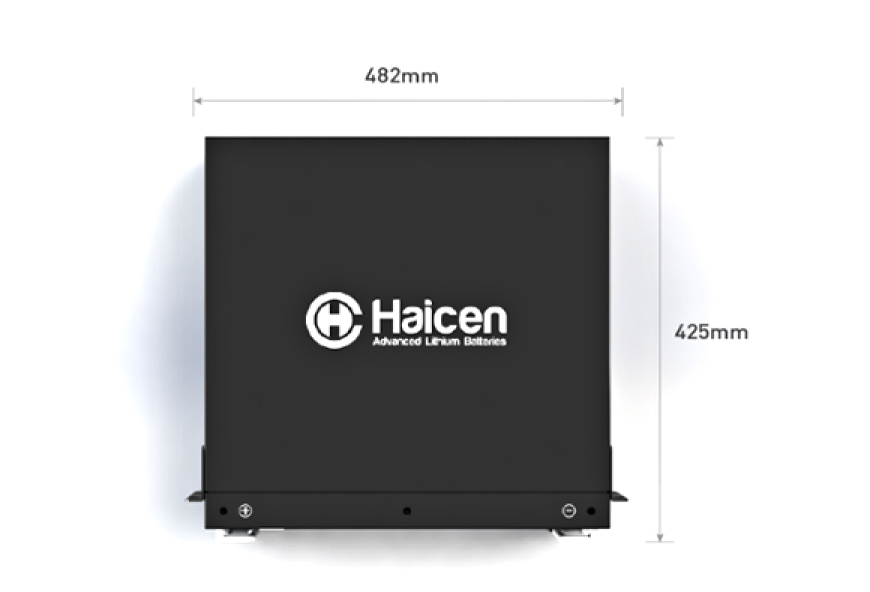

- Dimensions (mm) | 19.0×16.7×5.3 in(3U standard size)
- Approx. Weight
- 88.2 lb
- Terminal Type
- 4*M6
- Case Color / Material
- Black Metal Case
- IP Rating
- IP56
- Cell Type
- 3.2V106Ah prismatic cell
- Temperature Specifications
- Charge Temp | 32°F to 131°F
- Discharge Temperature
- -4°F to 140°F
- Storage Temperature
- -4°F to 113°F
Dimensions and weight shown in imperial units (in / lb).
