Trolling Motor Lithium Batteries

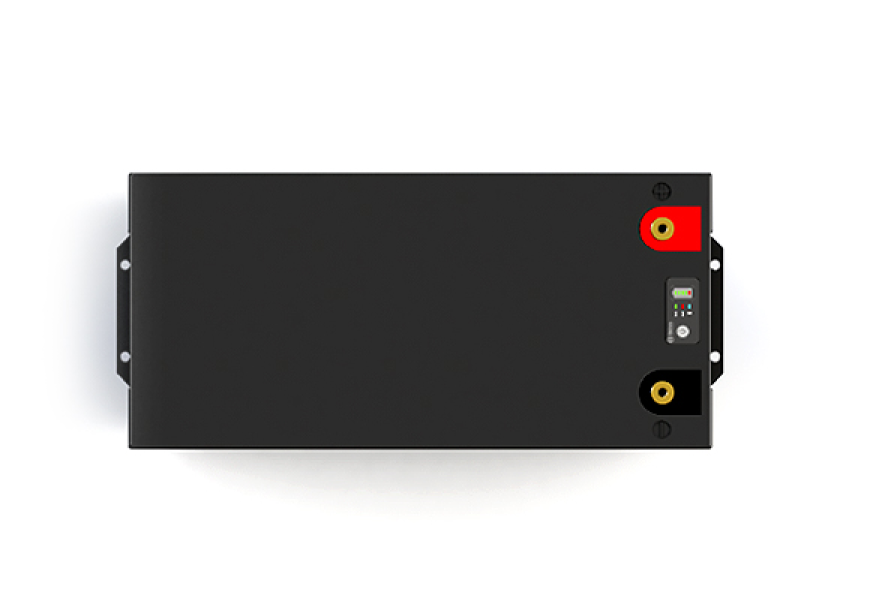

HCG4DS(BCI Group 4D) Series-36V100Ah Smart LiFePO4 Lithium Battery
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- Electrical Specifications
- Nominal Voltage | 36V | 36V
- Nominal Capacity
- 100Ah | 120Ah
- Parallel Connection
- Max. 6units | Max.6units
- Series Connection
- NO | NO
- BMS
- 12S100A | 12S100A
- Bluetooth
- Android/IOS | Android/IOS
- Heating
- No | No
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 43.2±0.6V | 43.2±0.6V
- Standard Current
- 20A | 24A
- Fast Charge Current
- 50A | 60A
- Discharge Specifications
- Standard Current | 20A | 24A
- Max. Continuous Current
- 100A | 100A
- Peak Current
- 700A(300ms) | 700A(300ms)
- Cut-off Voltage
- 30V | 30V
- Mechanical Specifications

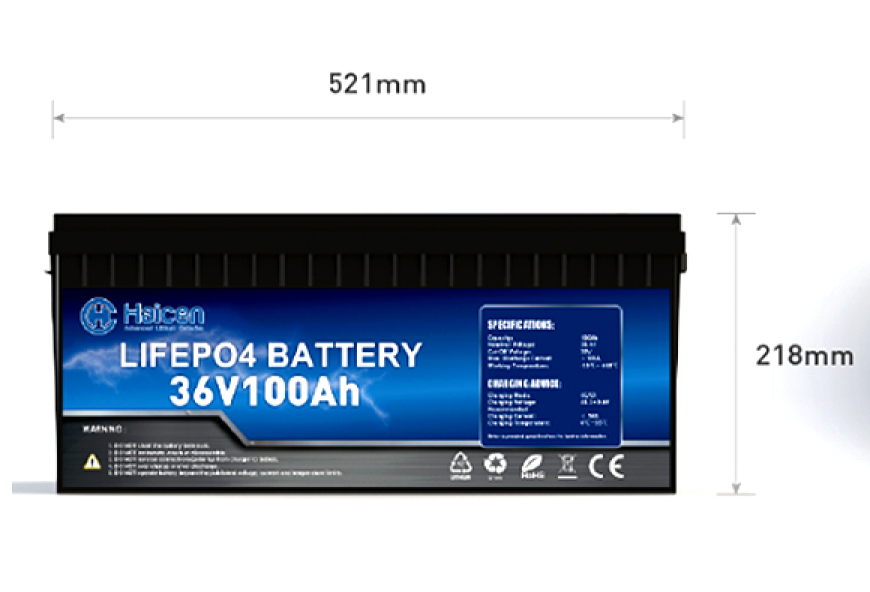

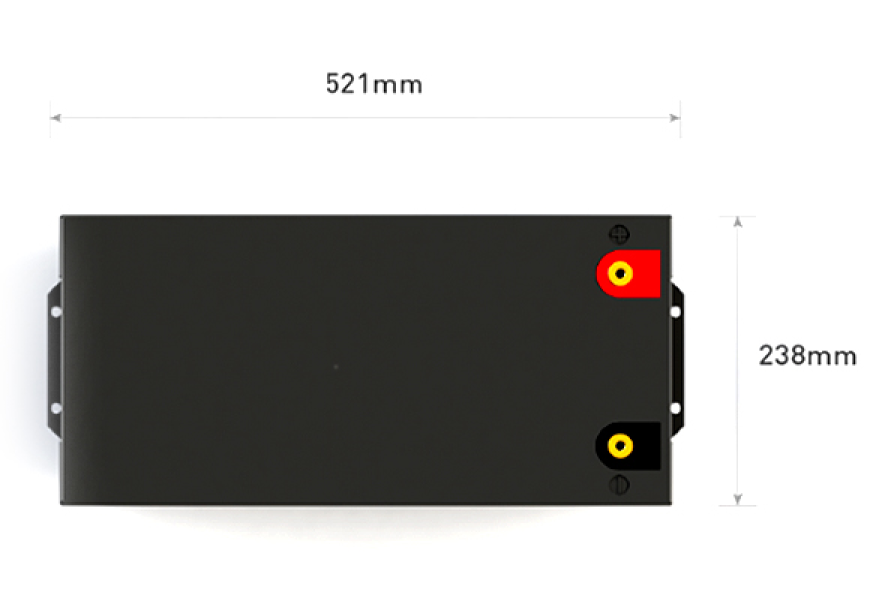

- Dimensions (mm) | 20.5×9.4×8.6 in(G4D)
- Approx. Weight
- 68.3 lb | 72.8 lb
- Terminal Type
- M8
- Case Color / Material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell Holder
- Yes
- Temperature Specifications
- Charge Temp | 32°F to 131°F
- Discharge Temperature
- -4°F to 140°F
- Storage Temperature
- 23°F to 113°F
Dimensions and weight shown in imperial units (in / lb).
