Sodium-ion Batteries

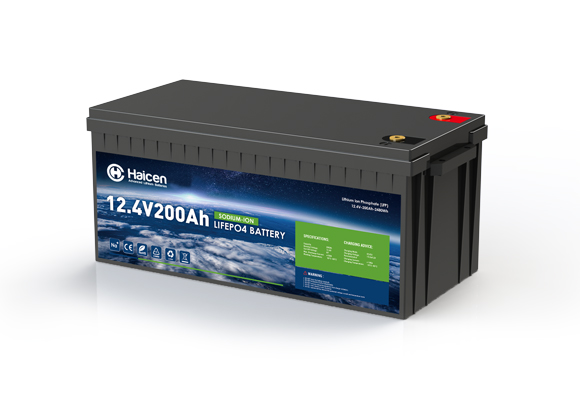

12V200Ah Sodium-ion Battery
- Electrical Specifications
- Nominal Voltage | 12.4V
- Nominal Capacity
- 200Ah
- Parallel Connection
- Max. 6units
- Series Connection
- Max. 4units
- BMS
- 4S150A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Communication
- Bluetooth, Heating, Display, RS485 or CANBus
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 15.8±0.2V
- Standard Current
- 40A
- Fast Charge Current
- 100A
- Discharge Specifications
- Standard Current | 40A
- Max. Continuous Current
- 150A
- Peak Current
- 400A(300ms)
- Cut-off Voltage
- 6V
- Mechanical Specifications
- Dimensions (mm) | 20.5×9.4×8.6 in (G4D)
- Approx. Weight
- 46.3 lb
- Terminal Type
- M8
- Case Color / Material
- Black Plastic Case (ABS)
- IP Rating
- IP65
- Cell Type
- Sodium-ion Rechargeable Cell
- Temperature Specifications
- Charge Temp | 14°F to 113°F （14°F to 113°F）
- Discharge Temperature
- -22°F to 140°F （-22°F to 140°F）
- Storage Temperature
- -4°F to 113°F （-4°F to 113°F）
Dimensions and weight shown in imperial units (in / lb).
