Solid State Lithium Batteries

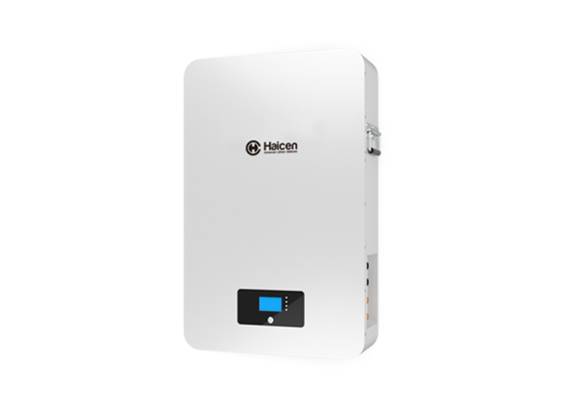

48V200Ah Wall Mounted Solid State Battery
- Electrical Specifications
- Nominal Voltage | 51.2V
- Nominal Capacity
- 200Ah
- Parallel Connection
- Max. 16units
- Series Connection
- No
- BMS
- 16S200A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Communication
- 2xRs485 and 1xCAN; LCD
- Cycle Life
- 5000times Cycles @100%DOD and 10000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 57.6±0.8V
- Standard Current
- 40A
- Fast Charge Current
- 100A
- Discharge Specifications
- Standard Current | 40A
- Max. Continuous Current
- 200A
- Peak Current
- 400A(30ms)
- Cut-off Voltage
- 40V
- Mechanical Specifications
- Dimensions (mm) | 22.4×33.1×7.8 in
- Approx. Weight
- 198.4 lb
- Terminal Type
- ES07 Energy Storage Quick Insert
- Case Color / Material
- White Metal Case
- IP Rating
- IP54
- Cell Type
- 3.2V 50Ah solid state cell
- Temperature Specifications
- Charge Temp | 32°F to 131°F
- Discharge Temperature
- -4°F to 140°F
- Storage Temperature
- -4°F to 113°F
Dimensions and weight shown in imperial units (in / lb).
