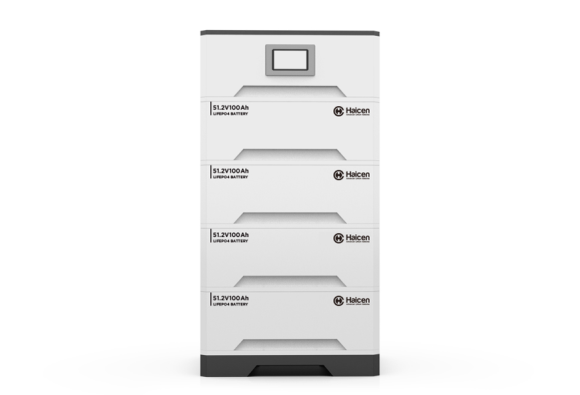

High Voltage System 205V100Ah Stack Mounted Solid State Battery
- Electrical Specifications
- Nominal Voltage | 204.8V
- Nominal Capacity
- 100Ah
- Parallel Connection
- No
- Series Connection
- No
- BMS
- 34S100A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Communication
- 2xRs485 and 1xCAN; LCD
- Cycle Life
- 5000times Cycles @100%DOD and 10000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 230.4±3.2V
- Standard Current
- 20A
- Fast Charge Current
- 50A
- Discharge Specifications
- Standard Current | 20A
- Max. Continuous Current
- 100A
- Peak Current
- 500A(100ms)
- Cut-off Voltage
- 160V
- Mechanical Specifications
- Dimensions (mm) | 21.7×19.3×40.8 in
- Approx. Weight
- 374.8 lb
- Terminal Type
- ES07 Energy Storage Quick Insert
- Case Color / Material
- White Metal Case
- IP Rating
- IP65
- Cell Type
- 3.2V 50Ah solid state cell
- Temperature Specifications
- Charge Temp | 32°F to 131°F （32°F to 131°F）
- Discharge Temperature
- -4°F to 140°F （-4°F to 140°F）
- Storage Temperature
- -4°F to 113°F （-4°F to 113°F）
Dimensions and weight shown in imperial units (in / lb).
