Golf Cart Lithium Batteries

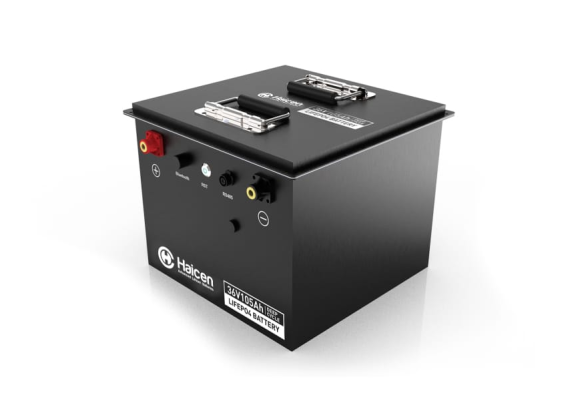

HC36105 Series-36V105Ah Golf Cart LiFePO4 Lithium Battery

Certifications

Electrical Specifications: Nominal Voltage | 38.4V
Nominal Capacity: 105Ah
Parallel Connection: Max. 4units
Series Connection: No
BMS: 12S100A
Circuit Protection: Over charge, Over discharge, Over current, Over temp, Short, Balance
Optional Function: Rs485 ,CAN; LCD; Active balancing module
Cycle Life: 3000times Cycles@100%DODand 6000times @80%DOD
Self Discharge: Less than 3% per month
Charge Efficiency: 100%@0.2C
Discharge Efficiency: 98-100%@1C
Charge Specifications: Charge Voltage | 43.2±0.6V
Standard Current: 21A
Fast Charge Current: 52.5A
Discharge Specifications: Standard Current | 21A
Max. Continuous Current: 100A
Peak Current: 700A(300ms)
Cut-off Voltage: 30V
Mechanical Specifications: Dimensions (mm) | 12.6×12.2×10.3 in
Approx. Weight: 70.5 lb
Terminal Type: M8
Case Color / Material: Black Metal case
IP Rating: IP65
Cell Type: 3.2V105Ah Prismatic Cell
Temperature Specifications: Charge Temp | 32°F to 131°F
Discharge Temperature: -4°F to 140°F
Storage Temperature: -4°F to 113°F

Dimensions and weight shown in imperial units (in / lb).
